Description

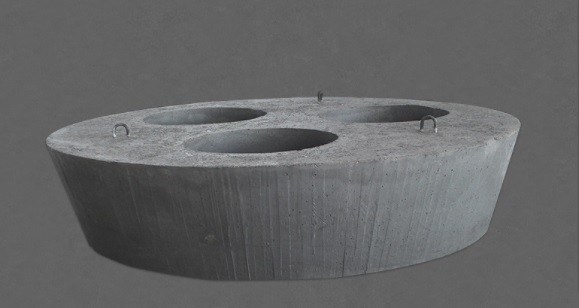

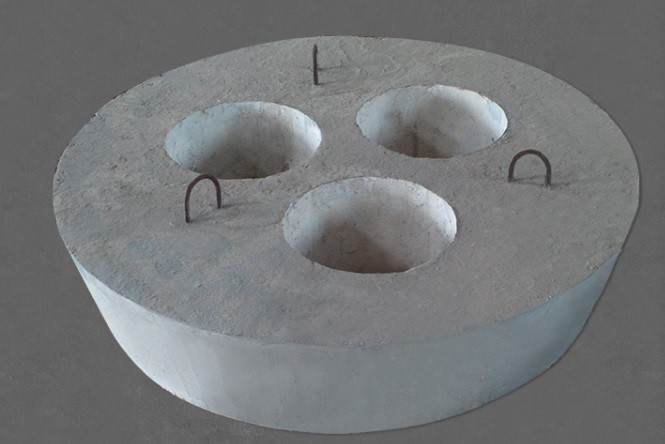

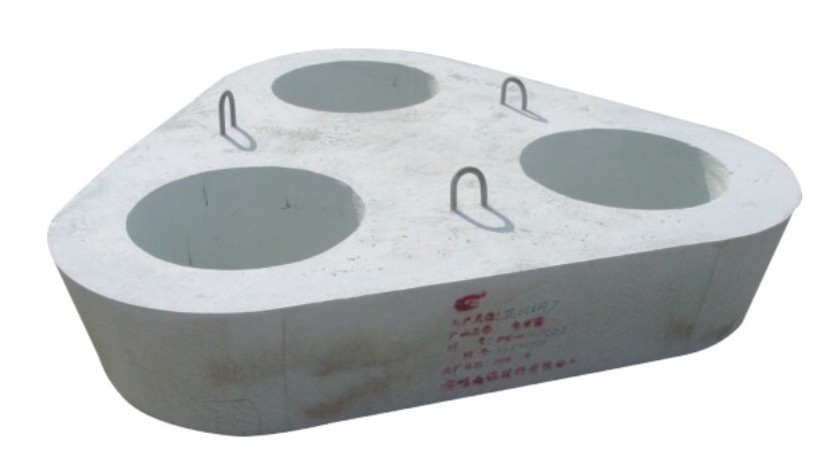

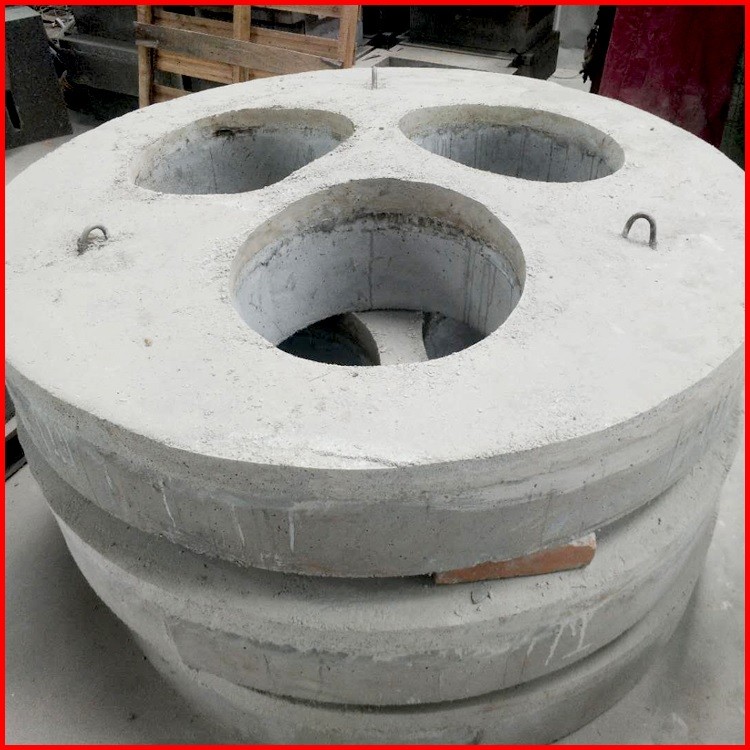

Product Name: Delta for EAF and Refining Furnace
Product Description
HIMC series of deltas for EAF and refining furnaces are innovatively designed for a wide range of operation applications, bearing frequent corrosion of thermal shock, steel slag and gas flows of CO, CO2 or SO2 as well as the radiation of high-temperature arch and the abrasion of speed dust flow.
HIMC series of deltas show the features of excellent thermal shock resistance, good erosion/corrosion resistance and long service life. They are the first choice for HP/UP EAF, refining furnaces and VD furnaces.
Main properties
|
Brand |
DT30 |
DTD33 |
DTD39 |
TDTD90 |
|
Al2O3+MgO (%)≥ |
80 |
90 |
90 |
- |
|
Al2O3+ Cr2O3 (%)≥ |
- |
- |
- |
88 |
|
Bulk density (g/cm3) ≥ |
2.80 |
2.85 |
3.10 |
3.00 |
|
Modulus of rupture (MPa)≥ |
5 |
10 |
12 |
6 |
|
Cold crushing strength (MPa)≥ |
25 |
60 |
60 |
40 |
|
Applications |
EAF |
EAF, LF |
EAF, LF |
EAF, VD |
