Description
Types of Magnesia Carbon Bricks :

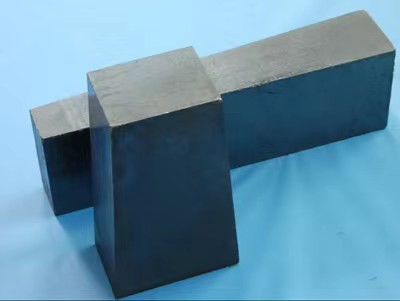

Magnesia Carbon Bricks
Magnesia Carbon Brick is a resin-bonded brick produced from dead-burned or fused magnesia and graphite. Anti-oxidant is also added if needed. Magnesia-Carbon brick works well in thermal resistance, corrosion, resistance, and spalling resistance.
Where it is used ?
Magnesia Carbon Brick is used in converters, EAFs ( Electric Arc Furnaces ), ladles and refining furnaces
Magnesia-Alumina Carbon Brick or Alumina-Magnesia Carbon Brick
Magnesia-Alumina Carbon Brick or Alumina-Magnesia Carbon Brick is produced from high quality bauxite, corundum, fused magnesia and graphite. Alumina-Magnesia Carbon brick has proper residual expansion, low thermal conductivity, and better insulation performance than that of Magnesia-Alumina Carbon brick which contain much more magnesia.
Where it is used ?
It is used in the slag line of the ladle, lower part of the ladle wall, ladle bottom and free zone of the ladle.
Magnesia-Calcium Carbon Brick
Magnesia-Calcium Carbon Brick is produced from good quality magnesia, dolomite clinker and synthetic magnesia dolomite clinker. It is a good resistant of slag and has a good stability in high-temperature vacuum working environment and can also purify the liquid steel
Where it is used ?
Magnesia Carbon Bricks
Magnesia Carbon Brick is a resin-bonded brick produced from dead-burned or fused magnesia and graphite. Anti-oxidant is also added if needed. Magnesia-Carbon brick works well in thermal resistance, corrosion, resistance, and spalling resistance.
Where it is used ?
Magnesia Carbon Brick is used in converters, EAFs ( Electric Arc Furnaces ), ladles and refining furnaces
Magnesia-Alumina Carbon Brick or Alumina-Magnesia Carbon Brick
Magnesia-Alumina Carbon Brick or Alumina-Magnesia Carbon Brick is produced from high quality bauxite, corundum, fused magnesia and graphite. Alumina-Magnesia Carbon brick has proper residual expansion, low thermal conductivity, and better insulation performance than that of Magnesia-Alumina Carbon brick which contain much more magnesia.
Where it is used ?
It is used in the slag line of the ladle, lower part of the ladle wall, ladle bottom and free zone of the ladle.
Magnesia-Calcium Carbon Brick
Magnesia-Calcium Carbon Brick is produced from good quality magnesia, dolomite clinker and synthetic magnesia dolomite clinker. It is a good resistant of slag and has a good stability in high-temperature vacuum working environment and can also purify the liquid steel
Where it is used ?
It is used mainly in refining furnaces such as UOD, AOD,EAF and LF ( Ladle Furnace ).

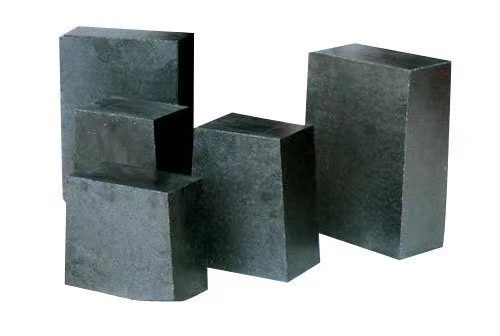

Product Name:Magnesia-Carbon Bricks For Ladle
Product Description
Using high-purity, high-density, large crystal magnesite and high-purity graphite as main raw materials, together with unique antioxidant and binder, HIMC manufactures a complete range of PN magnesia-carbon bricks. With the features of high strength, excellent resistance against slag, high refractoriness, good thermal shock resistance, the products are widely applied to ladle working lining, especially to slag zone. Optimum designs are offered to fit individual applications and actual smelting conditions and reliable performances have been proven.
Main properties for Ladle
|
Brand |
MT10A |
MT10B |
MT10C |
MT14A |
MT 14B |
|
MgO (%)≥ |
80 |
78 |
76 |
78 |
76 |
|
C (%)≥ |
10 |
10 |
10 |
14 |
14 |
|
Apparent porosity (%)≤ |
4 |
5 |
6 |
4 |
5 |
|
Bulk density (g/cm3) ≥ |
2.95 |
2.90 |
2.85 |
2.95 |
2.90 |
|
Cold crushing strength(MPa) ≥ |
40 |
35 |
35 |
40 |
35 |
|
Hot modulus of rupture (1400℃×30min) (MPa) ≥ |
8 |
6 |
5 |
12 |
8 |

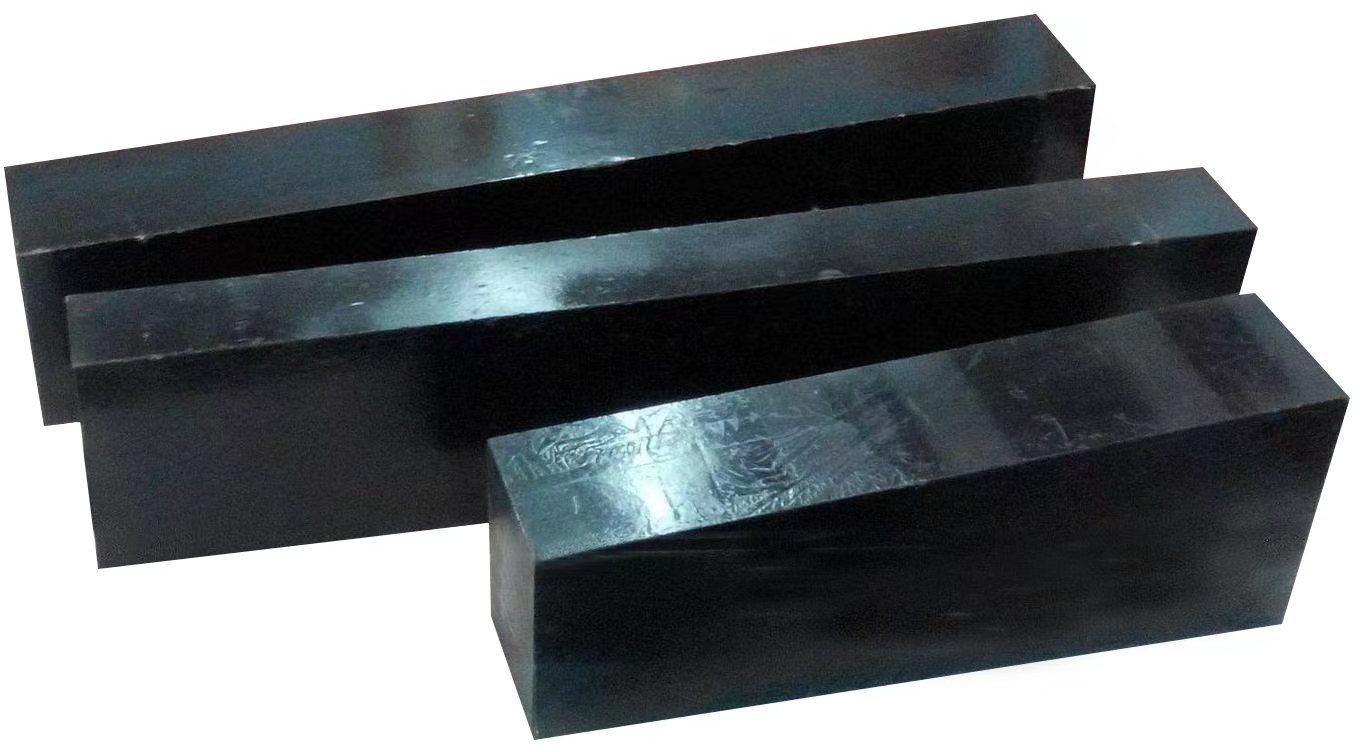

Product Name：EAF Magnesia-carbon Bricks
Product Description
On the basis of different application parts and conditions, using high-purity, high-density, large crystal magnesite and high-purity flake graphite as raw materials, adopting high-pressure shaping technique, and under the help of antioxidant, HIMC manufactures HIMC series of magnesia-carbon bricks for EAF lining.
The series of products have been widely used in steelworks worldwide. They show the features of high strength, excellent resistance against slag, good thermal shock resistance, high refractoriness etc., proving high performances.
Main Properties
|
Brand |
MT10A |
MT10B |
MT10C |
MT14A |
MT14B |
|
MgO(%) ≥ |
80 |
78 |
76 |
76 |
74 |
|
C(%)≥ |
10 |
10 |
10 |
14 |
14 |
|
Apparent porosity(%)≤ |
4 |
5 |
6 |
4 |
5 |
|
Bulk density（g/cm3）≥ |
2.95 |
2.90 |
2.85 |
2.95 |
2.90 |
|
Cold crushing strengt（MPa） ≥ |
40 |
35 |
35 |
40 |
35 |
|
Hot MOR （MPa） ≥ （1400℃×30min） |
8 |
6 |
5 |
12 |
8 |
